Split pressure water tank
Feature :
● Sun sky solar made water tank , Outlet close-loop in design, cold water inlet connect with water pipe, supply the hot water by the pressure of tap water, with enough hydraulic pressure.

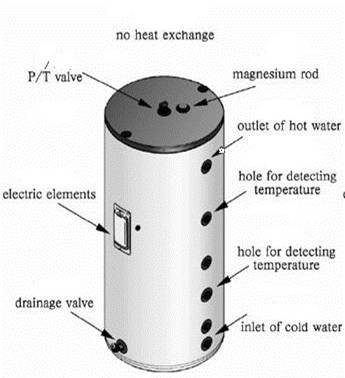

● Equip temperature controller, P/T Valve, safety valve etc. automatic controller and protection
● Mild steel sheet coated with special porcelain enamel, install long anode magnesium rod, soften the water and lengthen the service life of inner vessel.
● Equip assistant electric element, safety and convenient

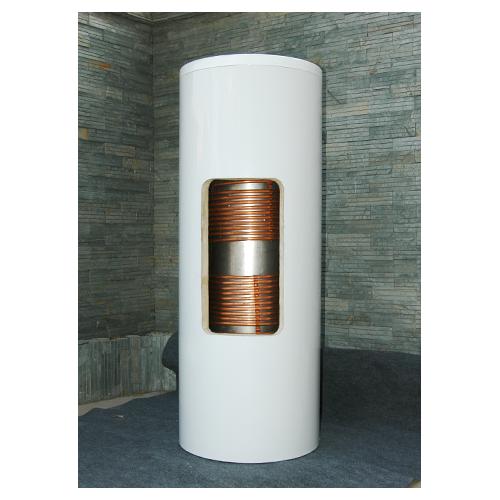

● Can equip heating exchanger in tank based on requirement, bulky heating exchange; economize the running time of the whole system
● Thickened high-density environment-friendly polyurethane thermal insulation layer, high efficiency and economize energy sources.
● High effect galvanized sheet shell, with outdoor coating technology, anticorrosive and rust-resistant, make the service life longer.
● Can connect multi-units in parallel, install total and satisfy more hot water requirement.
Super water flow:Sufficient water let you enjoy the comfortable bath .
Specification:
Model
100L
150L
200L
250L
300L
400L
500L
Outer diameter (mm)
Φ470
Φ470
Φ540
Φ600
Φ600
Φ700
Φ700
Inner diameter(mm)
Φ365
Φ365
Φ440
Φ480
Φ480
Φ600
Φ600
Material and thickness of the inner vessel
SUS304 1.2
SUS304 1.2
SUS304 1.2
SUS304 1.2
SUS304 1.2
SUS304 1.2
SUS304 1.2
Material and thickness of the outer vessel
galvanized sheet 0.5
galvanized sheet 0.5
galvanized sheet 0.5
galvanized sheet 0.5
galvanized sheet 0.5
galvanized sheet 0.5
galvanized sheet 0.5
Insulation thickness(mm)
50
50
50
50
50
50
50
Top exchanger area (㎡)
----
----
0.4
0.4
0.4
0.5
0.5
Bottom exchanger (㎡)
0.6
0.6
0.7
0.7
0.7
0.8
0.8
Connection size of heating exchanger
5/8"
5/8"
5/8"
5/8"
5/8"
5/8"
5/8"
Size of water pipe
NPT3/4"
NPT3/4"
NPT3/4"
NPT3/4"
NPT3/4"
NPT3/4"
NPT3/4"
rated heating power
1.5KW
1.5KW
1.5KW
1.5KW
2.5KW
2.5KW
2.5KW
Overall dimension(mm)
Φ470×1150
Φ470×1630
Φ540×1510
Φ600×1640
Φ600×1840
Φ700×1600
Φ700×1920
Weight(references)(Kg)
33
45
54
67
82
91
105
Container (sets )
89/186/218
65/134/157
47/97/113
36/74/87
32//66/78
28/59/69
25/51/60
