Heat pipe split pressure SWH
Component of product:

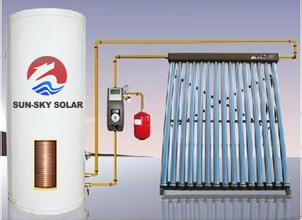

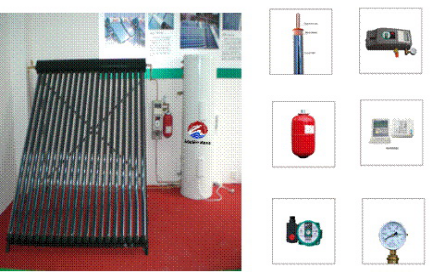

Sun sky solar made this system is specially designed for household ,villa & small area unit by our company .It consist of three parts such as heat pipe solar collector ,storage water tank ,working station ect
Environmental protection
Adequately use non-pollution & clean solar energy
Multi-function :suitable to the household villa ,school ,hospital small solar project ect
Intelligence :automatic controller ,reliable operation ,onetime investment ,long time benefit

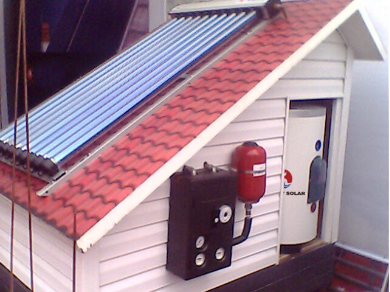

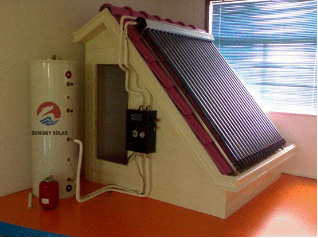

Installation :Install easy & convenient In harmony with the building.

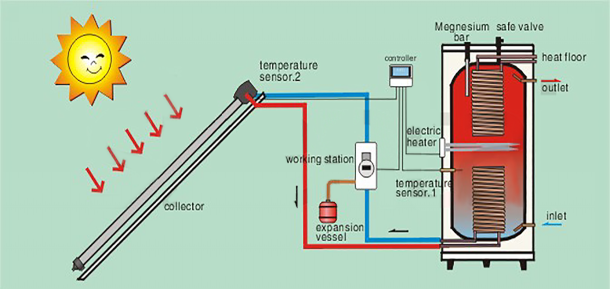

Working principle :
Adopt temperature difference circulation
When the temperature of heat collector reaches the set value ,the controller start the circulation pump automatically
The heat conducting liquid transfer heat to the water tank by copper heat exchanger .
In case the temperature of water tank does not reach TMax ,controller start auxiliary heating device
In case the temperature of circulation pump does not reach the set valve ,the circulation pump shall be shut down automatically .
Specification :
Model
Heat pipe
Absorb area
Tank capacity
Container (sets )
Diameter
Length
No.
(㎡)
(L)
20GP
40GP
40HQ
SKY-SPV-1800/58-12
Φ58
1800
12
1.73
100
49
102
119
SKY-SPV-1800/58-18
Φ58
1800
18
2.57
150
35
77
90
SKY-SPV-1800/58-24
Φ58
1800
24
3.41
200
29
60
70
SKY-SPV-1800/58-30
Φ58
1800
30
4.25
250
24
50
58
SKY-SPV-1800/58-36
Φ58
1800
36
5.14
300
19
39
46
SKY-SPV-1800/58-48
Φ58
1800
48
6.82
400
15
31
36
SKY-SPV-1800/58-60
Φ58
1800
60
8.5
500
13
27
32
