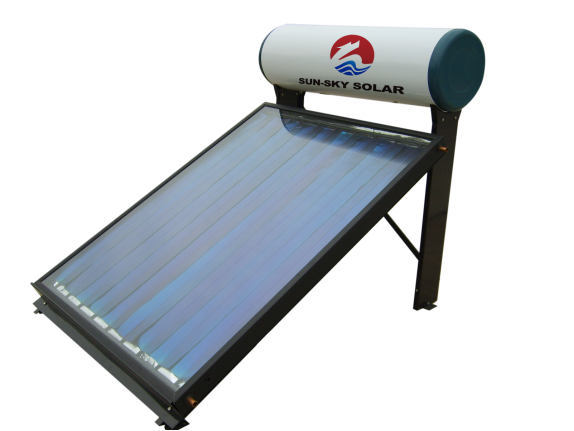

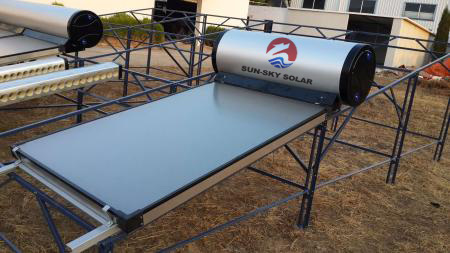

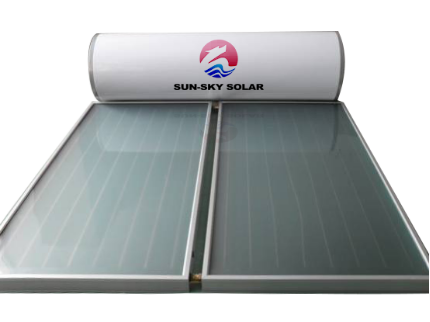

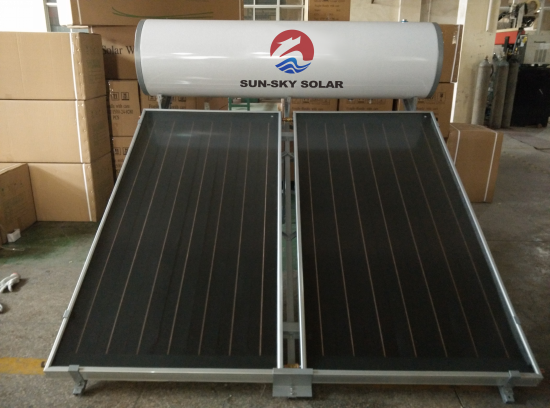

Flat panel low-pressure SWH
Advantage of flat panel low pressure SWH
1. More simple installation :incline / flat roof optional
2. More strong & safe collector with tempered glass glazing ,even glass cover broken ,whole system still keep
normal working ,free of maintenance once installing;
3. Flat panel system Occupy more market share , caused more & more family welcomed ;
4. Enjoys much more popularity in warm area
5. Sun-sky solar made flat plate system has 20 years service time ,much more than vacuum tube solar system;
6. In harmony with building & architecture .beauty design, it can be installed as glass wall or mirror on the roof to decorate urban or countryside .
Specification :
Flat panel solar collector
Size (mm)
2000*1000*80mm / 2000*1250*80mm
Cover glass
Low iron tempered glass with transmittance ≥ 91%
Coating
Blue TiNOx ,black Chrome with with absorptance ≥ 92%
Absorber
Aluminum plate laser welded with header & riser TP2 copper pipe
Insulation
High density polyurethane fibre
Frame
Aluminum alloy with anti-aging rubber sealing
Water tank
Capacity
100L ,150L ,200L ,250L ,300L
Inner tank
Food grade SUS304-2B thickness :0.5mm
Outer tank
Colored steel thickness :0.5mm
Bracket
Colored steel thickness 1.5mm angle : 10°、20°、25°、30°、40°、45° optional
Auxiliary accessories

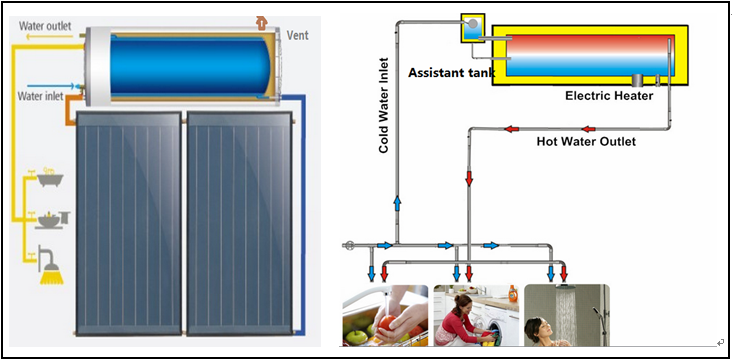

Assistant tank ,electric heater ,Mg anode , Intelligent controller pipe & fittings
Model
Flat panel solar collector
tank capacity
Container (sets)
Collector size (mm)
collector No.
Aperture area ㎡.
Liter
20GP/40GP/40HQ
2000*1000*80
1
2
100L
65/135/158
2000*1250*80
1
2.5
150L
50/103/120
2000*1250*80
1
2.5
200L
33 / 77 / 91
SKY-NF-250
2000*1000*80
2
4
250L
30 / 62 / 72
SKY-NF-300
2000*1000*80
2
4
300L
23 / 48 / 57
