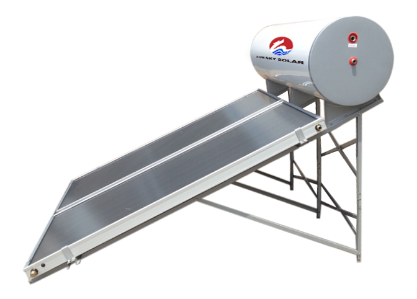

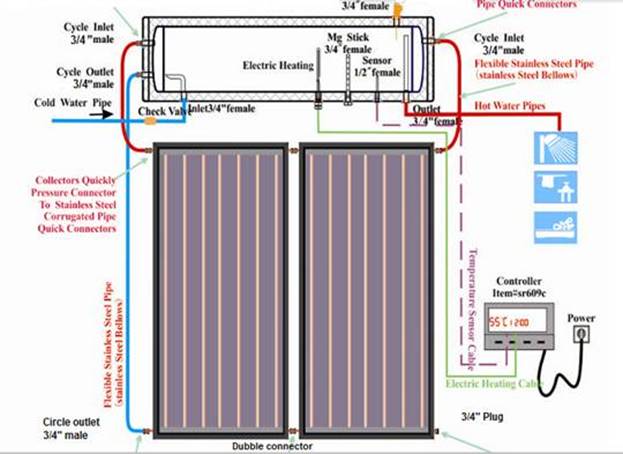

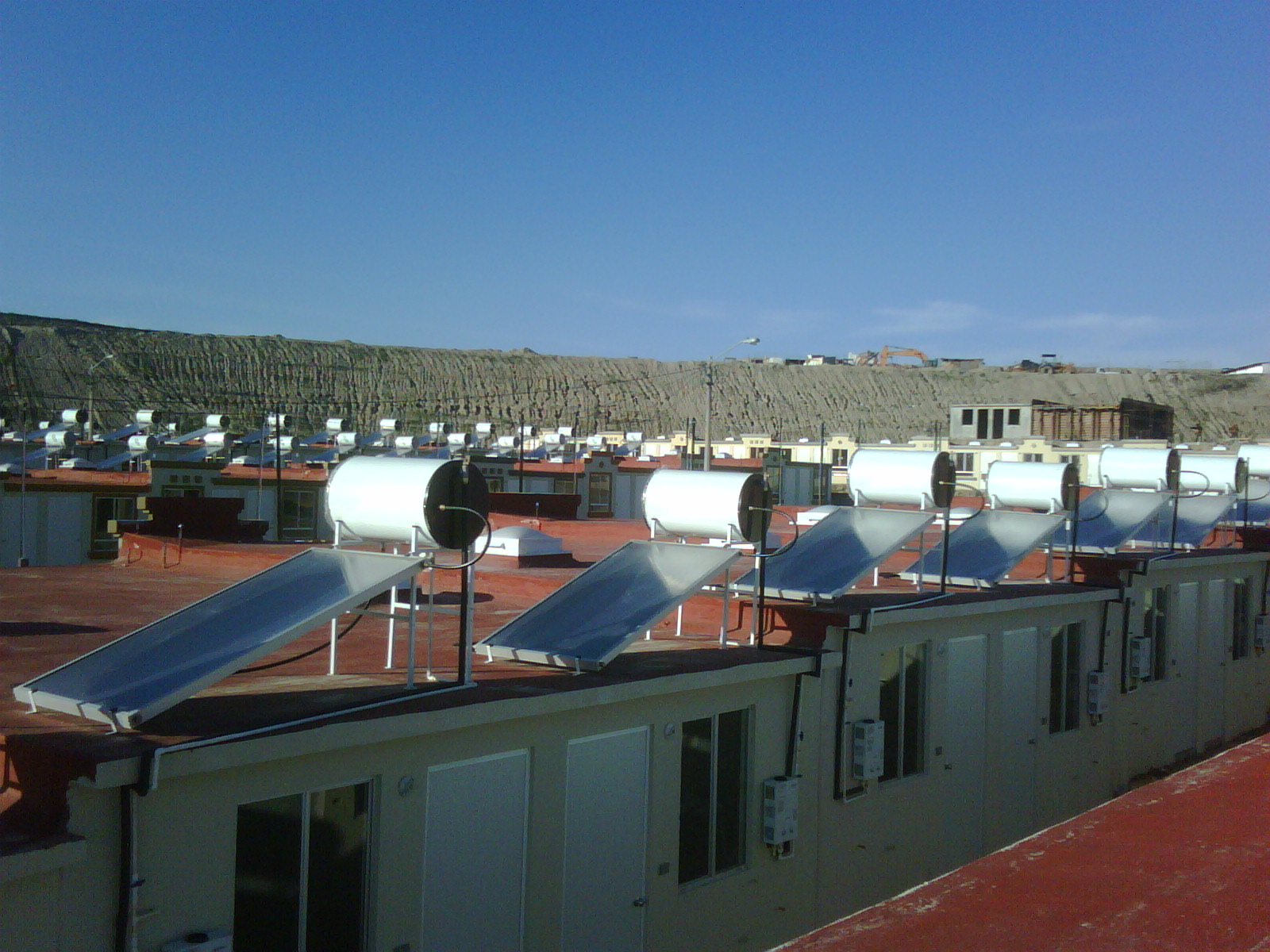

Flat panel compact pressure SWH
I Water tank
1.Inner tank : SUS304-2B food grade stainless steel thickness:1.2mm.
2.Outer tank :Colored steel or SUS201 stainless steel thickness :0.5mm
3.Capacity :100L 120L 150L 200L 250L 300L
4.Bracket : galvanized steel thickness :1.5mm
5.Test pressure :12bar
6.Heat preservation :72 hours

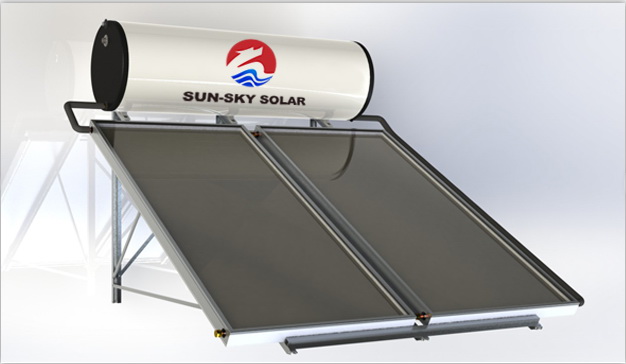

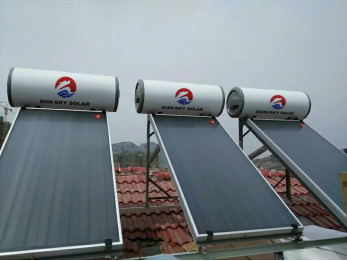

II Flat panel solar collector
1.Low -iron tempered glass offer the biggest light transmittance.
2.Blue TiNOx ,black Chrome alternative ensure high absorption rate to ensure high efficiency .
3.Since we adopt advanced production ,no adhesive or mechanical joints ,free of deteriorate by age or high temperature.
4.Special anodized aluminum alloy frame ensure handsome appearance and anti-crrosion properly
Product Technical Data :
Model
SKY-PF-100
SKY-PF-150
SKY-PF-200
SKY-PF-250
SKY-PF-300
Tank capacity (L)
100L
150L
200L
250L
300L
Inner tank Dia.(mm)
Φ385
Φ385
Φ440
Φ440
Φ440
Outer tank Dia.(mm)
Φ500
Φ500
Φ540
Φ540
Φ540
Inner tank material & thickness(mm)
SUS304-2B t 1.2
SUS304-2B t 1.2
SUS304-2B t 1.2
SUS304-2B t 1.2
SUS304-2B t 1.2
Working pressure（Mpa）
0.6
0.6
0.6
0.6
0.6
Outer tank material & thickness(mm)
Colored steel 0.5
Colored steel 0.5
Colored steel 0.5
Colored steel 0.5
Colored steel 0.5
Insulation material & thickness (mm)
Polyurethane 55
Polyurethane 55
Polyurethane 55
Polyurethane 55
Polyurethane 55
Inlet & outlet Size( mm)
NPT3/4"
NPT3/4"
NPT3/4"
NPT3/4"
NPT3/4"
Auxiliary heating elements
1.5KW
1.5KW
2KW
2.5KW
2.5KW
Bracket material & thickness
Colored steel 1.5mm
Bracket angle
10°、20°、25°、30°、40°、45°
Collector No.
1
1
2
2
2
Collector size (mm)
2000*1000*80
2000*1250*80
2000*1000*80
2000*1000*80
2000*1000*80
Water tank packing (mm)
550*550*850
550*550*1250
600*600*1400
600*600*1850
600*600*2150
Container (sets)
65/135/158
50/103/120
33/77/91
30/62/72
23/48/57
