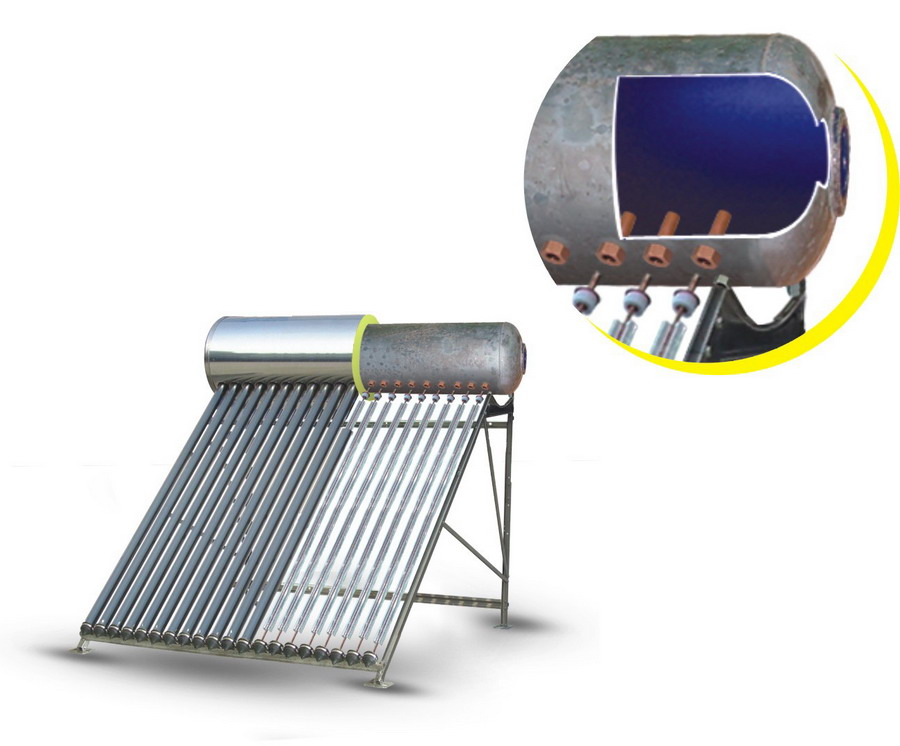

Heat pipe compact pressure SWH
Feature :
1. Working with high pressure 0.6Mpa (6bar)

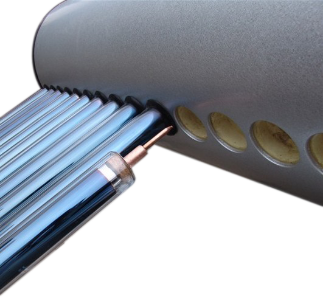

2. Use heat pipe vacuum tube for transfer heat energy, Shorten the time for heating water
3. Hot water coming out with pressure.
4. No limitation for the installation position
5. Each tube work alone so it can work even if one of the tube is broken
6.Working temperature: -40℃ to 100℃
7.Heat preservation :72 hours
8.Color: As per customers request
9.Warranty: 1 year for electric parts/5 Years for the full system /15 Years for the vacuum tube
Material:
Inner tank: Imported stainless steel (SUS304/2B), thickness :2mm
Outer tank: colored steel , thickness :0.5mm

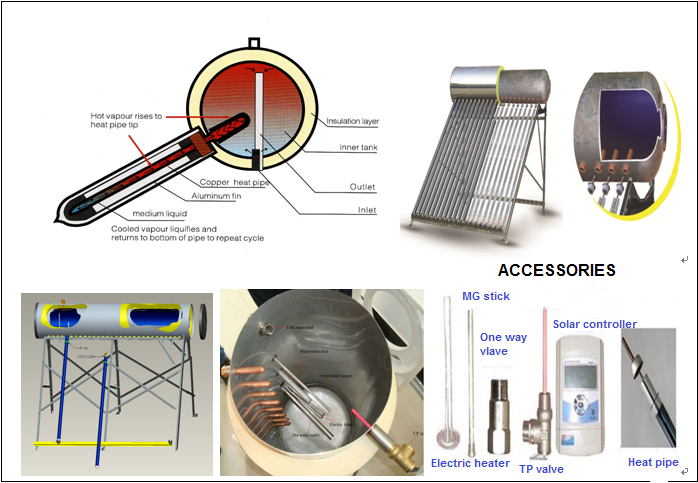

Tank Include: 1.5kw Electric Heater ,T&P Valve ,One way valve ,Mg Anode
Bracket: Galvanized steel , thickness :1.5mm
Heat insulation layer: Imported polyurethane (Bayer,Germany),thickness: 50mm
Heat Pipe: high quality straight red copper pipe.
Specification :
Model
SKY-P-10
SKY-P-15
SKY-P-18
SKY-P-20
SKY-P-24
SKY-P-30
Inner tank Dia.(mm)
Φ365
Outer tank Dia.(mm)
Φ470
Φ470
Φ470
Φ470
Φ470
Inlet & outlet dimension
NPT3/4"
NPT3/4"
NPT3/4"
NPT3/4"
NPT3/4"
NPT3/4"
Heating elements (W)
1.5KW
1.5KW
1.5KW
2.0KW
2.5KW
2.5KW
Heat pipe Tube .No.
15pcs
15pcs
18pcs
20pcs
24pcs
30pcs
Heat pipe size
Φ58*1800
Φ58*1800
Φ58*1800
Φ58*1800
Absorbing Area(㎡)
1.38
2.07
2.49
2.76
3.32
4.15
100L
150L
180L
200L
250L
300L
Water tank dimension(mm)
Φ470*700
Φ470*1430
Φ470*1590
Φ470*1860
Φ470*2180
Φ470*2660
Loading quantity (sets )
20GP/40GP/40HQ
65/135/158
49/101/119
41/71/101
37/77/91
31/64/76
23/48/57
