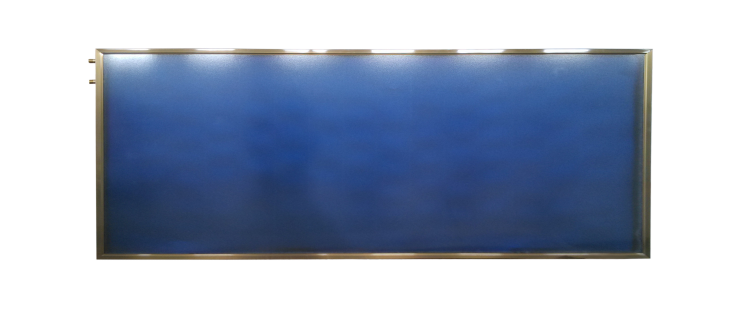

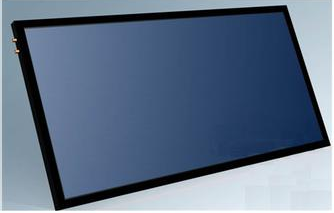

Horizontal flat panel solar collector

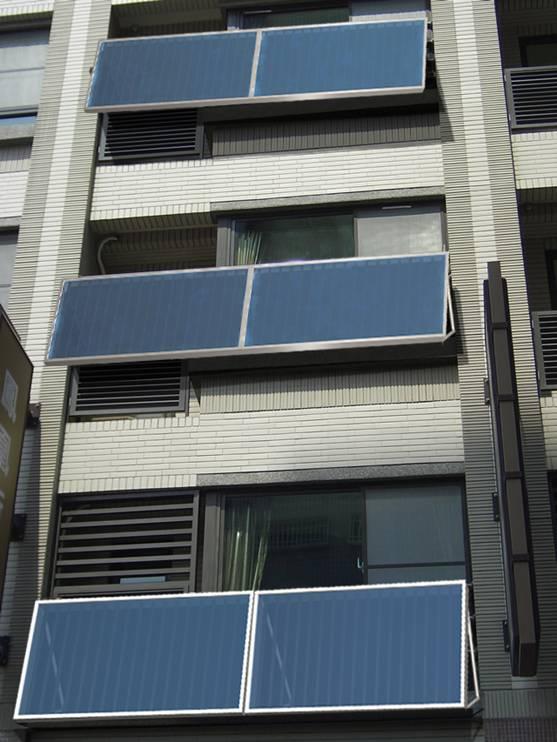

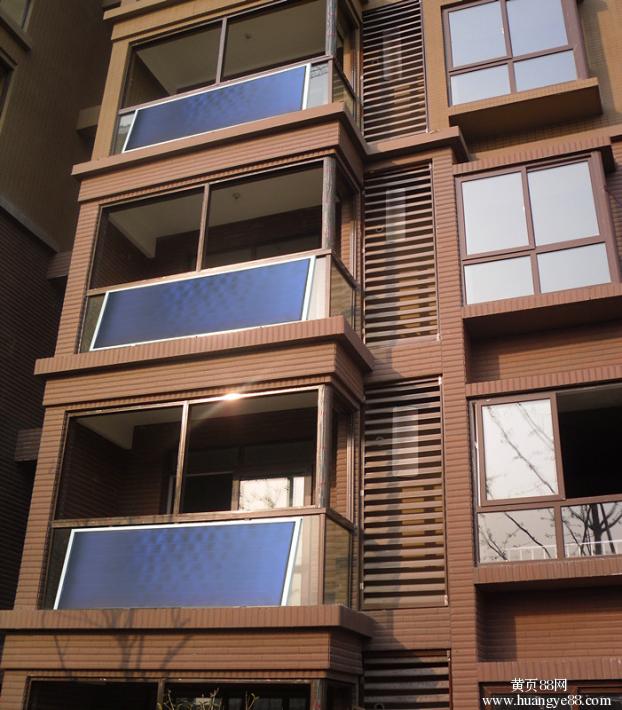

Sunsky solar made flat plate solar collector have safe 、reliable 、long service life maintenance free combined with the construction perfectly ,withstand pressure and other characteristics, with the accelerated pace of urbanization, water demand for high-level, small high-rise buildings, this type flat plate solar collector which arranged in the south balcony or wall to produce hot water, we called horizontal or balcony wall hanging flat panel solar collector
Following feature:◆Excellent quality : Aviation Aluminum Alloy frame initially , anti typhoon and other natural hail weather.
◆Low- iron tempered glass , high transmittance more than 92%
◆High efficient design,domestic initiation , low flow rate, instantaneous efficiency more than 80%
◆ultra-slim 50mm frame,conform to international aesthetic standards
◆Adopt p 50-80Kg/m high density insulation materials better heat preservation.
◆Imported blue titanium coating, the absorption rate is above 95%, reached world leading level
◆ Laser welding technology, which is beautiful and does not damage the metal surface strength
◆Anti freezing design ,minimum working temperature -40℃
◆Working pressure: 0.6 MPa ; test pressure 1.2 MPa
◆Service life: 25 years
◆Environmental protection material, a life-time benefit from once investment
Specification:
Model
SK-Ti-2.0-BF
SK-Ch-1.9-BF
SK-An-2.0-BF
Specification
(mm)
2000*1000*80
2400*800*80
2500*800*80
Absorber area
(㎡ )
1.85
1.76
1.85
Gross area
(㎡ )
2
1.92
2
Absorber Coating
blue TiNOx
black chrome
black anodic oxidation
Absorption coefficient
%
＞94±2
＞91±2
＞89±2
Emission coefficient
%
＜4±2
＜8±2
＜11±2
Flowing Pipe
mm
Φ8*0.5
Φ8*0.5
8*0.5
Header pipe
mm
Φ22*0.6
Φ22*0.6
Φ22*0.6
Absorber volume
L
1.7
1.6
1.7
Numbers of connector
pcs
2
2
2
Connection Dia.
(R)
1/2”
1/2”
1/2”
Max working /test pressure
bar
6/12
6/12
6/12
Stagnation temperature
℃
210
210
210
Back sheet
0.5mm galvanized steel
Welding
laser
Weight
KG
32
30
33
Container sets
20GP/40GP/40HQ
PCS
135/276/335
