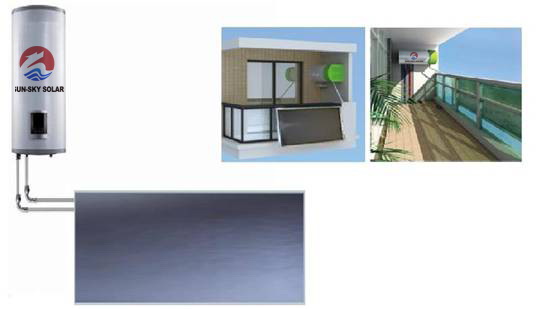

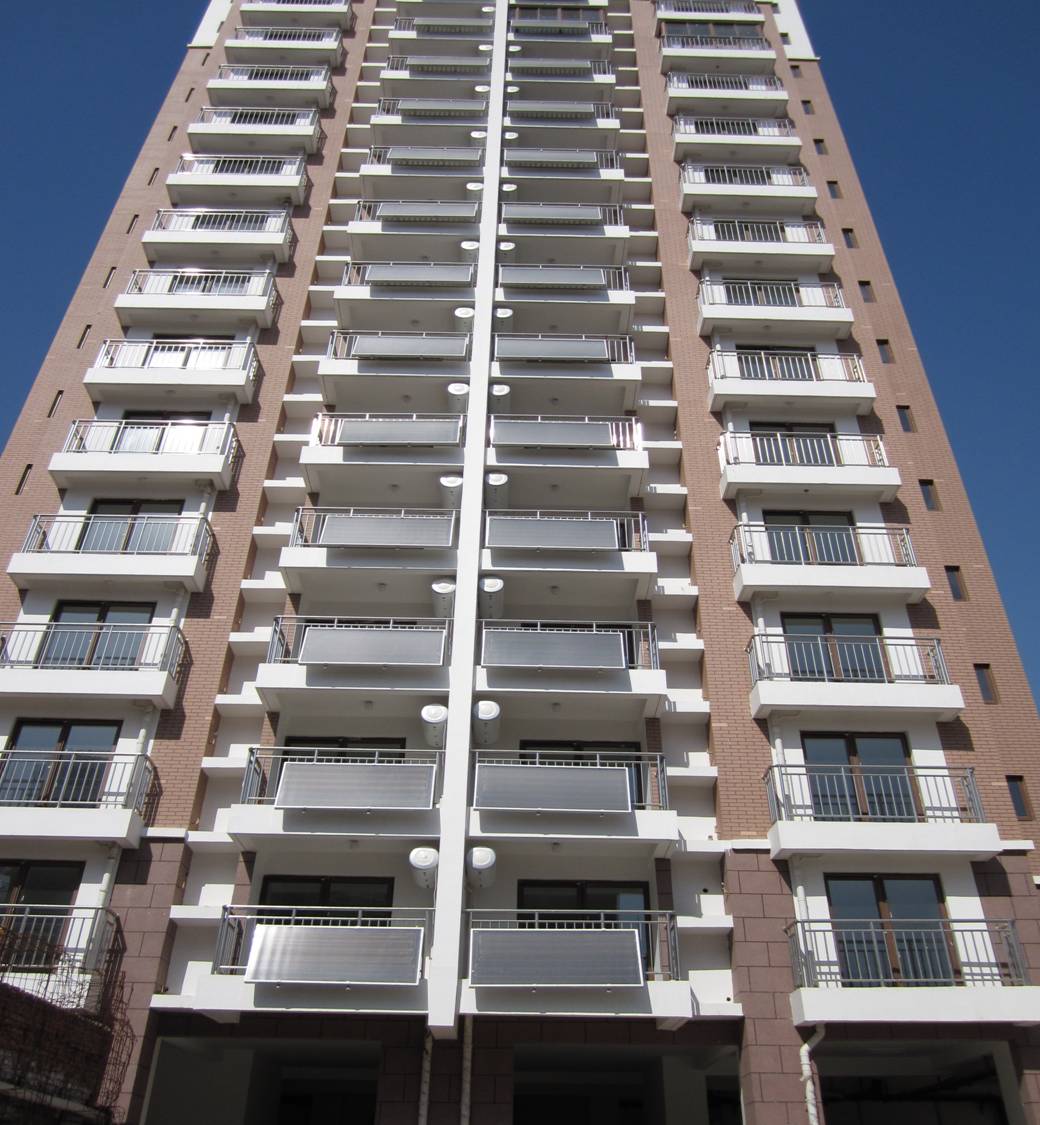

Balcony type solar water heater belongs to separate type solar hot water system , it is one type placed solar collector outdoor,absorbing sunlight ,but water tank placed on the top solar water system .The working principle is : with flat panel solar collector absorbing sunshine covert sun radiation from heat.Using siphon principle :the heat active water tank exchange with water so that water ‘s temperature gradually rising throughout whole water tank.As solar collector and water tank separated adapted to installation of modern urban high buildings ,occupying their balcony space without disturbing each other.

Feature:

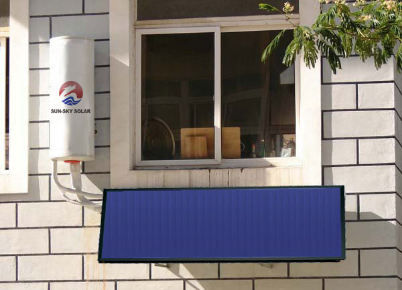

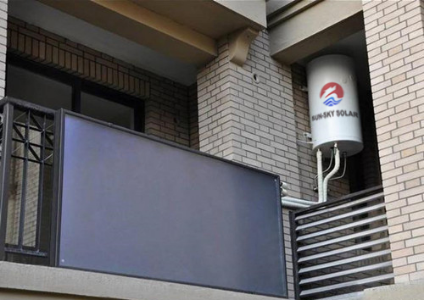

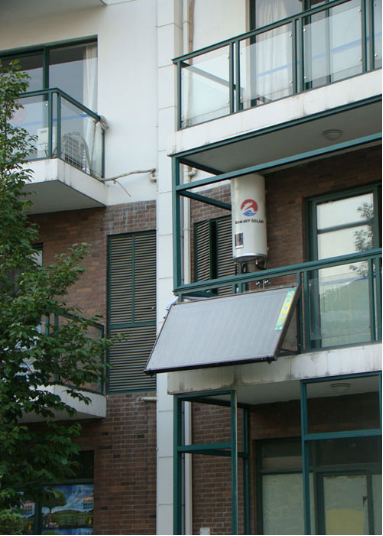

a、Split installation :solar system collector are separated totally with water tank ,solar collector placed in balcony indoor or outdoor ,water tank full occupy balcony outdoor space ,solve the problem of high building user cannot assembly solar water system and realize the solar system  combine with building harmoniously .

b. Working with pressure : water circulation system is pressure ,water pressure is stable . realize constant temperature & pressure ,strong scour feeling , make bathing comfortable .

c、Energy –saving : the working  liquid circle system  is natural circulation ,so in Sun conditions to provide user hot water , whole system is zero energy loss .

d.One way heat exchange – pipe of flat panel no water flow ,collector & water tank do heat exchange type work

e.Intelligent control : system adopt intelligent controller & various protection function ,Convenient & safe use.

f. Multi-function complementary : Solar & other energy complementary (like electricity )ensure user can use hot water anytime .g.Saty & reliable :The successful application of flat panel heat exchange technique in the product ,not only improves thermal efficiency of wall hung product ,but also successfully implemention integrated product life & building safety requirements,and greatly remove the conventional solar water heater frozen ,easily tube blast ,easy leaking ,easy scale ,ect .problem ,so traditional solar water heater’s good bye to the “unsafe time ”particularly with following secure feature :

Security I :winter anti-freezing solar water heater

General solar system , in cold winter ,vacuum tube frozen ,water heater also will be “winter sleep ” flat panel technology ,because there are speed heating liquid ,fast low-temperature start ,high heat transfer efficiency . Under -40℃

Condition , flat panel collector applied with this technology ,inner pipe doesn’t froze ,no any frozen concerns .

Security II : high temperature “blast proof ” solar water heater

Generally ,inner vacuum tube flow water ,once blast ,not only solar system cann’t work properly ,and a huge threat to people’s  security .In order to solve this difficulty ,new generation technical crystallization -  flat panel heat exchange

technology ,using the unique structure ,no water run in the tube ,can bear cold & hot water impact , no blast .Enjoy hot water easily ,free of blast concerns .

Security III: leakage free solar water heater

Conventional water tank with vacuum tube internal connection ,single tube leaks the entire solar system crash accordingly ,water leaking from “ice downpipe”at low temperature ,threatening the security of person & buildings .Flat panel heat exchange technology ,fully enclosed solar water heater operation.

Security IV: easy“scale-proof “solar water heater

Even the best solar water heater ,once inner wall of vacuum tube generate heavy  scale ,water cann’t flow ,heat cann’t transfer ,it’s troublesome .Flat panel heat exchange technique implement no water flow in the circle ,suitable to various water quality of different region ,successfully  relieve  water scale trouble .

Specification :
