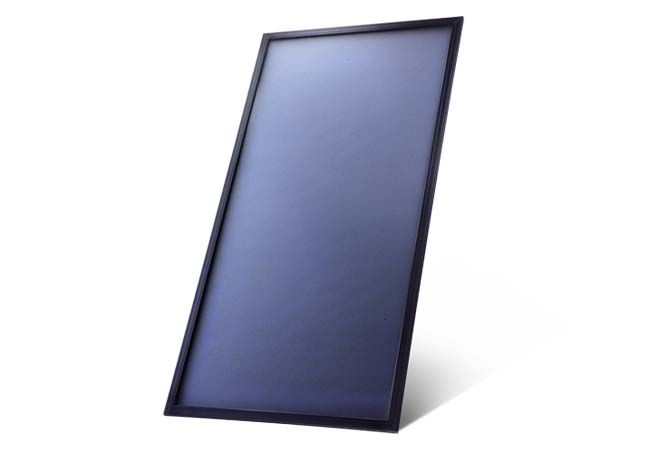

Vertical Flat panel solar collector
-
In Satisfying the most rigid requirements of markets , there are no better collectors than sun sky solar energy co.,ltd made .We offer the most advanced technology and superior design ensuring maximum sun absorption and efficiency that outperforms competing collectors .Quality materials are unique manufacturing techniques ensure a durable product that will pay for itself many times over
Our wide range solar collectors allow tailored cost-effective hot water solutions for a wide variety of locations & climate conditions .The aesthetic designs ,engineered for strength and optimal performance ,ensure maximum benefits from the sun-sky solar system of your choice.
1.Solar Glass -3.2mm thick
The solar glass is patterned to reduce reflection and maximize strength & durability in severe weather conditions like hail storms
2. Absorber plate coating
Blue TiNOx coating absorption rate of 95% for high efficiency & durability . All provide a superior surface designed for excellent energy absorption even in cooler climates
3. Copper pipe frame
Φ 8 copper pipes ,welded with Φ 22 collector pipes,for optional distribution of the flow rate
4. Insulation
The flat absorber is covered with 40mm thickness glass wool to hold the heat inside the panel
5. Back sheet
Galvanized steel thickness 0.5mm
6. Extrusion Casing Available in Aluminum
Light weight with solid construction .Available in aesthetically pleasing colors.
7. Pipe connections
Two 3/4 BSP brass adapters for fast installing & connecting to the installation pipe .
Specifiacation :
Model
SK-Ti-2.0-VF
SK-Ch-2.0-VF
SK-An-2.0-VF
Specification
(mm)
2000*1000*80
2000*1000*80
2000*1000*80
Absorber area
( ㎡ )
1.85
1.85
1.85
Gross area
( ㎡ )
2
2
2
Absorber
blue TiNOx coating
black chrome coating
black anodic coating
Absorption coefficient
%
＞94±2
＞91±2
＞89±2
Emission coefficient
%
＜4±2
＜8±2
＜11±2
Flowing Pipe
mm
Φ8*0.5
Φ8*0.5
8*0.5
Header pipes
mm
Φ22*0.6
Φ22*0.6
Φ22*0.6
Absorber volume
L
1.7
1.7
1.7
Numbers of connector
pcs
4
4
4
Connection diameter
(R)
3/4”
3/4”
3/4”
Max working /test pressure
bar
6/12
6/12
6/12
Stagnation temperature
℃
210
210
210
Back sheet
galvanized steel 0.5mm
Welding
laser welding
Weight
KG
35
32
30
Container sets
20GP/40GP/40HQ
PCS
135/276/335
